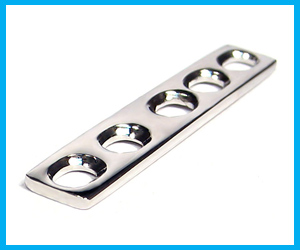

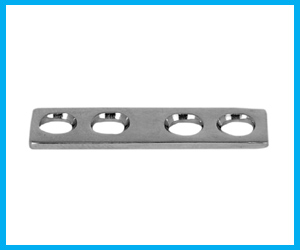

Mini Fragment Plates (for 2.0mm Screws) Straight Mini Plate (Finger Plates)
|
Cat. No. |
Holes |
Length |
|
ST131.03 |
3 |
17mm |
|
ST131.04 |
4 |
23mm |
|
ST131.05 |
5 |
29mm |
|
ST131.06 |
6 |
35mm |
|
ST131.07 |
7 |
41mm |
|
ST131.08 |
8 |
47mm |
|
Thickness |
4 holes to 6 holes - 1mm |
|
|
Thickness |
7 holes & 8 holes - 1.5mm |
|
|
Width |
5 mm |
|

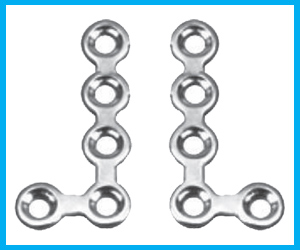

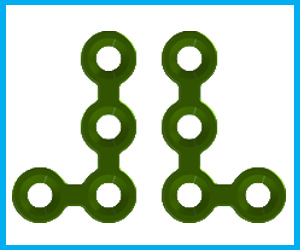

Mini L-Plate (Left/Right)
|
Thickness |
1mm |
|
Width |
5mm |
Mini Fragment Plates 2.7mm Screws Quarter Tubular Plates
|
Cat. No. |
Holes |
Length |
|
ST131.03 |
3 |
23mm |
|
ST131.04 |
4 |
31mm |
|
ST131.05 |
5 |
39mm |
|
ST131.06 |
6 |
47mm |
|
ST131.07 |
7 |
55mm |
|
ST131.08 |
8 |
63mm |
|
Thickness |
|
1mm |
|
Width |
|
7mm |

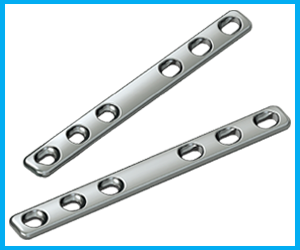

Dynamic Compression Plates 2.7mm (For Metacarpals)
|
Cat. No. |
Holes |
Length |
|
ST131.02 |
2 |
20mm |
|
ST131.04 |
4 |
36mm |
|
ST131.05 |
5 |
44mm |
|
ST131.06 |
6 |
52mm |
|
ST131.07 |
7 |
60mm |
|
ST131.08 |
8 |
68mm |
|
ST131.09 |
9 |
76mm |
|
ST131.10 |
10 |
84mm |
|
ST131.12 |
12 |
100mm |
|
Thickness |
2mm | |
|
Width |
8mm |
L-Plate (Left/Right)
|
Thickness |
1.5mm |
|
Width |
8mm |

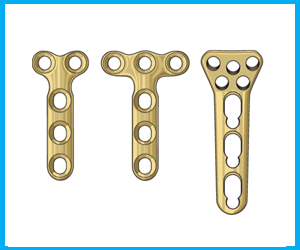

T-Plate 2.7mm
|
Thickness |
1.5mm |
|
Width |
8mm |

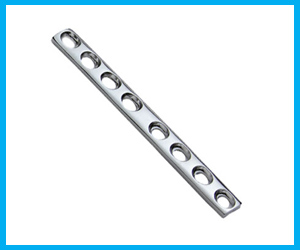

Straight 2.7mm Reconstruction Plate (mandible Plates)
|
Cat. No. |
Holes |
Length |
|
ST531.05 |
5 |
40mm |
|
ST531.6 |
6 |
48mm |
|
ST531.08 |
8 |
64mm |
|
ST531.10 |
10 |
80mm |
|
ST531.12 |
12 |
96mm |
|
ST531.14 |
14 |
112mm |
|
ST531.16 |
16 |
128mm |
|
ST531.18 |
18 |
144mm |
|
ST531.20 |
20 |
160mm |
|
ST531.22 |
22 | 176mm |
|
ST531.24 |
24 | 192mm |
|
Thickness |
2.7mm |
|
|
Width |
8mm |
Straight 2.7mm Reconstruction Plate (mandible Plates)
Fibula Compression Plate For Tibia & Distal
|
Cat. No. |
Holes |
Length |
|
ST241.02 |
2 |
25mm |
|
ST241.03 |
3 |
37mm |
|
ST241.04 |
4 |
49mm |
|
ST241.05 |
5 |
61mm |
|
ST241.06 |
6 |
73mm |
|
ST241.07 |
7 |
85mm |
|
ST241.08 |
8 |
97mm |
|
ST241.09 |
9 |
109mm |
|
ST241.10 |
10 |
121mm |
|
ST241.12 |
12 | 145mm |
|
Thickness |
3mm | |
|
Width |
10mm |
|
Small T-Plate (for Distal Radius)
|
Cat. No. |
Holes Shaft |
Holes Head |
Length |
|
ST341.03 |
3 |
3 |
39mm |
|
ST341.04 |
4 |
3 |
56mm |
|
ST341.05 |
5 |
3 |
67mm |
|
ST341.06 |
6 |
3 |
78mm |
|
Thickness |
1.2mm |
|
|
|
Width |
10mm |
|
|

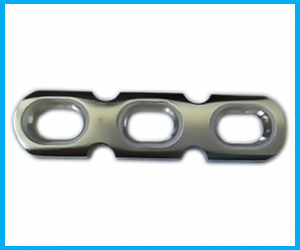

Straight 3.5mm Reconstruction Plates
|
Cat. No. |
Holes |
Length |
|
ST441.05 |
5 |
58mm |
|
ST441.06 |
6 |
70mm |
|
ST441.07 |
7 |
82mm |
|
ST441.08 |
8 |
94mm |
|
ST441.10 |
10 |
118mm |
|
ST441.12 |
12 |
142mm |
|
ST441.14 |
14 |
166mm |
|
ST441.16 |
16 |
190mm |
|
ST441.18 |
18 |
214mm |
|
Thickness |
2.8mm | |
|
Width |
10mm |

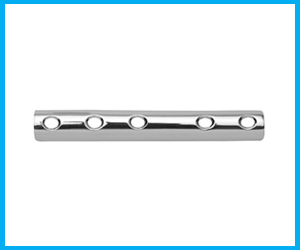

Plates for 4.5mm And 6.5mm Screws Semi Tubular Plates (Fixation with 4.5mm cortex Screws)
|
Cat. No. |
Holes |
Length |
|
ST151.02 |
2 |
39mm |
|
ST151.03 |
3 |
55mm |
|
ST151.04 |
4 |
71mm |
|
ST151.05 |
5 |
87mm |
|
ST151.06 |
6 |
103mm |
|
ST151.07 |
7 |
119mm |
|
ST151.08 |
8 |
135mm |
|
ST151.09 |
9 |
151mm |
|
ST151.10 |
10 |
167mm |
|
ST151.11 |
11 | 183mm |
|
ST151.12 |
12 | 199mm |
|
Thickness |
1mm | |
|
Width |
11mm |

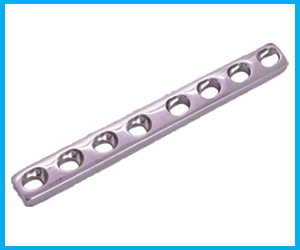

Narrow Dynamic compression Plates
|
Cat. No. |
Holes |
Length |
|
ST251.02 |
2 |
29mm |
|
ST251.03 |
3 |
55mm |
|
ST251.04 |
4 |
71mm |
|
ST251.05 |
5 |
87mm |
|
ST251.06 |
6 |
103mm |
|
ST251.07 |
7 |
119mm |
|
ST251.08 |
8 |
135mm |
|
ST251.09 |
9 |
151mm |
|
ST151.10 |
10 |
167mm |
|
ST251.11 |
11 | 183mm |
|
ST251.12 |
12 | 199mm |
|
ST251.13 |
13 | 215mm |
|
ST251.14 |
14 | 231mm |
|
ST251.15 |
15 | 247mm |
|
ST251.16 |
16 | 263mm |
|
Thickness |
3.6mm | |
|
Width |
12mm |

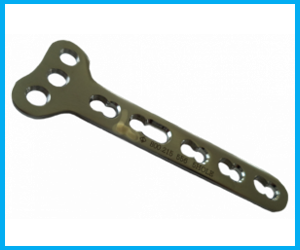

T-Plates (for Humerus and Tibial Head)
|
Cat. No. |
Holes |
Length |
|
ST451.03 |
3 |
68mm |
|
ST451.04 |
4 |
84mm |
|
ST451.05 |
5 |
100mm |
|
ST451.06 |
6 |
116mm |
| ST451.08 | 8 |
148mm |

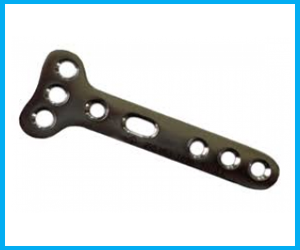

T-Buttress Plates (with Double Band as buttress for Tibia Head)
|
Cat. No. |
Holes |
Length |
|
ST551.04 |
4 |
81mm |
|
ST551.05 |
5 |
96mm |
|
ST551.06 |
6 |
112mm |

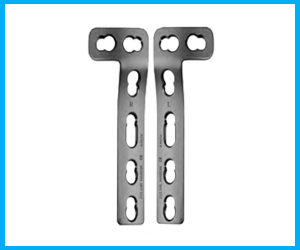

L-Buttress Plate (Left/Right)
|
Cat. No. |
Length |
|
4 |
86mm |

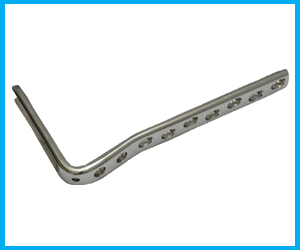

(Fracture of Distal and Proximal femur, Intertrochentric algus osteotamy)
|
Cat. No. |
Holes |
Length |
|
ST751.05 |
5 |
92mm |
|
ST751.07 |
7 |
124mm |
|
ST751.09 |
9 |
156mm |
|
ST751.12 |
12 |
204mm |
|
ST751.14 |
14 |
236mm |
|
ST751.16 |
12 |
268mm |
|
Thickness |
5.6mm |
|
|
Width |
16mm |
|

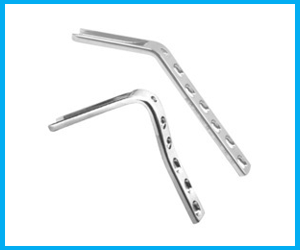

Angled Blade Plates 1300 (with Dynamic Compression Holes) (Fracture of Femoral Head)
|
Cat. No. |
Holes |
Length Shaft |
Length Blade |
|
ST851.04 |
4 |
60mm |
60, 70, 80, 90mm |
|
ST851.06 |
6 |
104mm |
60, 70, 80, 90mm |
|
ST851.09 |
9 |
152mm |
60, 70, 80, 90mm |
|
ST851.12 |
12 |
200mm |
60, 70, 80, 90mm |
|
Thickness |
5.6mm |
|
|
|
Width |
16mm |
|
|

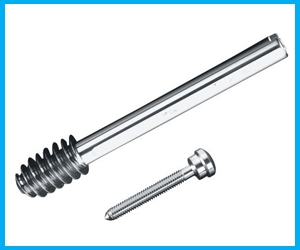

Dynamic Hip Screw with Compression Screw
|
Cat. No. |
Length |
|
Length |
50mm to 110mm (with 5mm diff.) |
|
Thread Diamater |
12.5mm |
|
Thread Length |
22m |
|
Shaft Dia |
8.0mm |

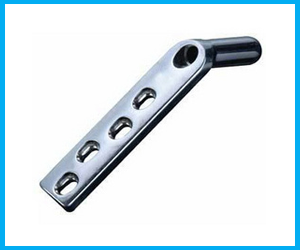

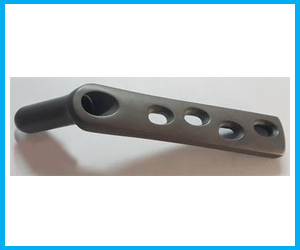

Barrel Plates 1350
|
Cat. No. |
Holes |
Length |
|
ST061.02 |
2 |
46mm |
|
ST061.04 |
4 |
78mm |
|
ST061.06 |
6 |
94mm |
|
ST061.08 |
8 |
110mm |
|
ST061.10 |
10 |
142mm |
|
ST061.12 |
12 |
174mm |
|
ST061.14 |
41 |
206mm |
|
ST061.16 |
16 |
238mm |
|
Thickness |
5.8mm |
|
|
Width |
19mm |
|
|
Barrel Length |
38mm |
|
Barrel Plates 1350
|
Cat. No. |
Holes |
Length |
|
ST161.06 |
6 |
100mm |
|
ST161.08 |
8 |
130mm |
|
ST161.10 |
10 |
163mm |
|
ST161.12 |
12 |
198mm |
|
ST161.14 |
14 |
225mm |
|
ST161.16 |
16 |
260mm |
|
Thickness |
5.4mm |
|
|
Width |
16mm |
|
|
Barrel Length |
25mm |
|

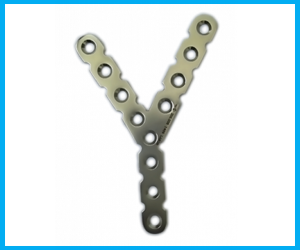

Y-Reconstruction Plate for Humeral Condyle
|
Cat. No. |
Length |
|
Thickness |
2mm |
|
Width |
10mm |
Clover Leaf Plate
|
Cat. No. |
Holes |
Length |
|
ST741.03 |
3 Holes |
88mm |
|
ST741.04 |
4 Holes |
103mm |

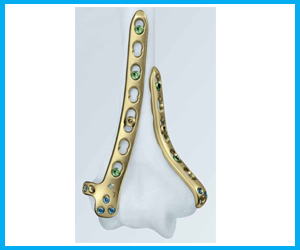

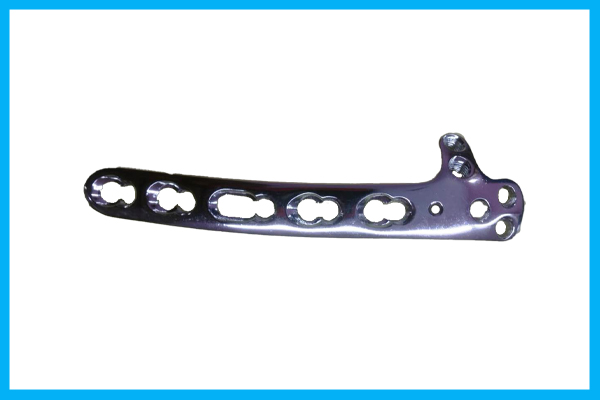

2.7-3.5mm LCP Distal Humerus Plate
|
Cat. No. |
Length |
|
Thickness |
|
|
Width |
|

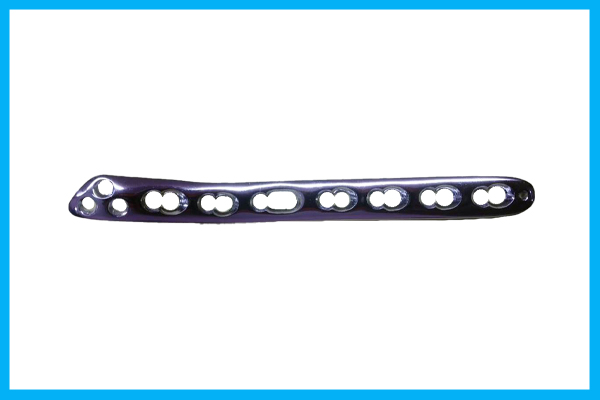

2.7-3.5mm LCP Distal Medial Humerus Plate
|
Cat. No. |
Holes |
Length |
|
ST741.03 |
|
|
|
ST741.04 |
|
|

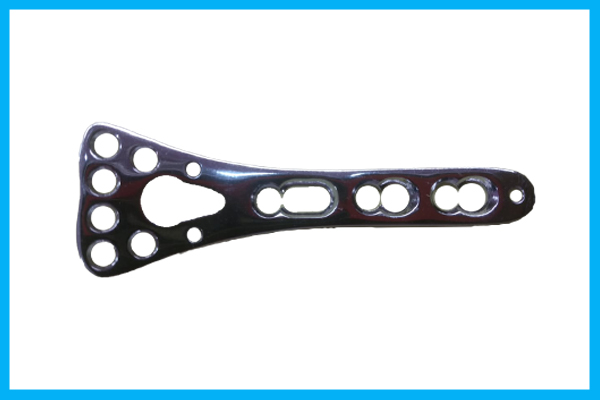

2.7-3.5mm LCP Distal Radius Plate
|
Cat. No. |
Length |
|
Thickness |
|
|
Width |
|

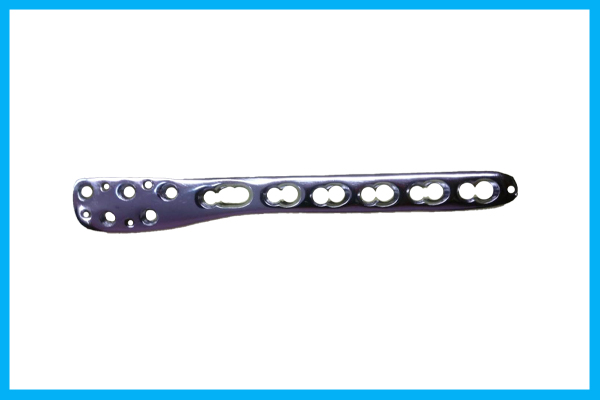

2.7-3.5mm LCP Fibula Plate
|
Cat. No. |
Holes |
Length |
|
ST741.03 |
|
|
|
ST741.04 |
|
|

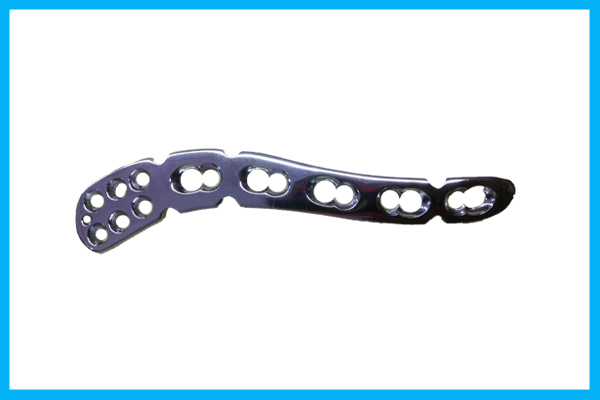

2.7-3.5mm LCP Supriar Clavicle Plate
|
Cat. No. |
Length |
|
Thickness |
|
|
Width |
|

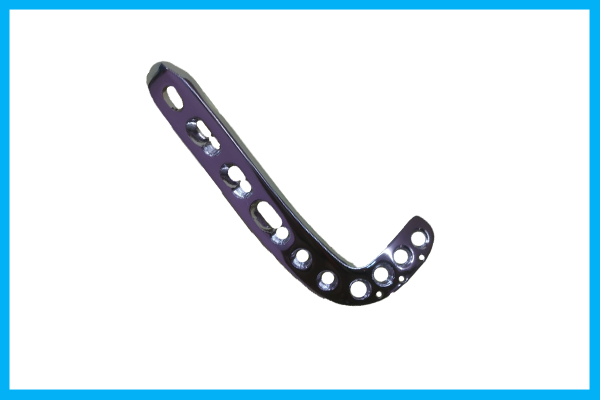

3.5mm LCP Anterolateral Tibia Plate
|
Cat. No. |
Holes |
Length |
|
ST741.03 |
|
|
|
ST741.04 |
|
|

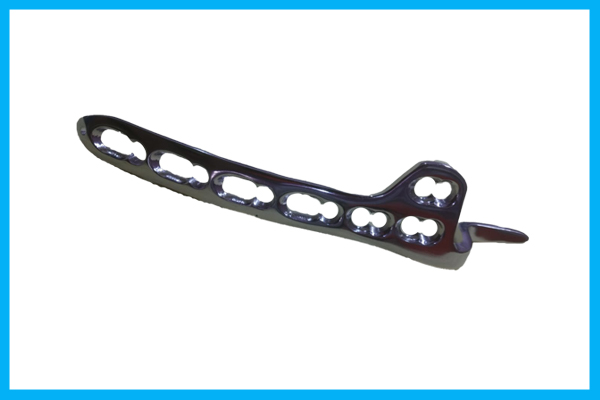

3.5mm LCP Clavicle Plate
|
Cat. No. |
Length |
|
Thickness |
|
|
Width |
|
3.5mm LCP Distal Tibia Plate
|
Cat. No. |
Holes |
Length |
|
ST741.03 |
|
|
|
ST741.04 |
|
|

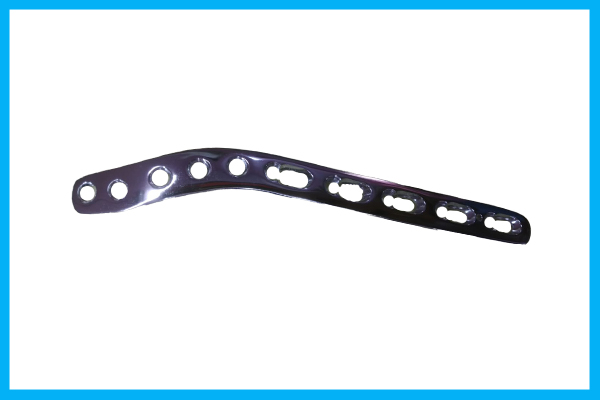

3.5mm LCP Extra Articular Humerus Plate
|
Cat. No. |
Length |
|
Thickness |
|
|
Width |
|

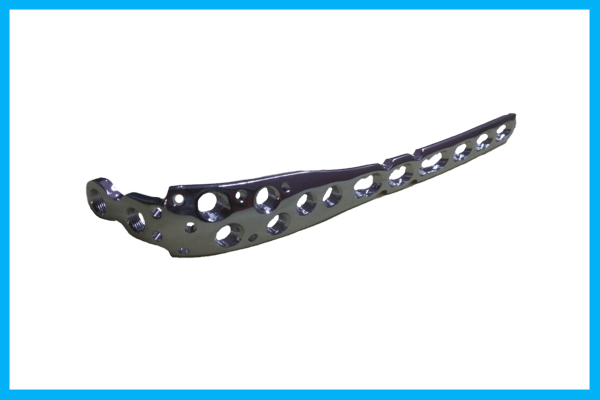

3.5mm LCP Olicranon Plate
|
Cat. No. |
Holes |
Length |
|
ST741.03 |
|
|
|
ST741.04 |
|
|

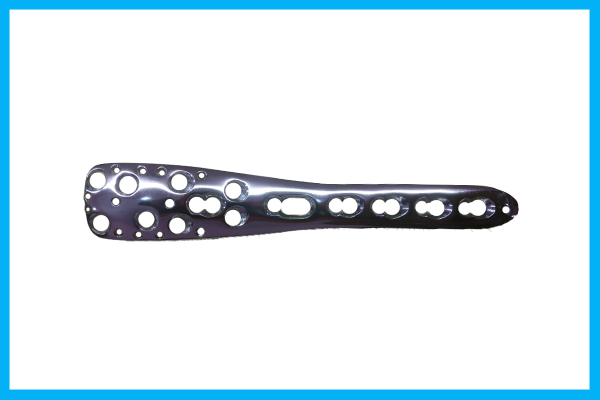

3.5mm LCP Philos Plate
|
Cat. No. |
Length |
|
Thickness |
|
|
Width |
|

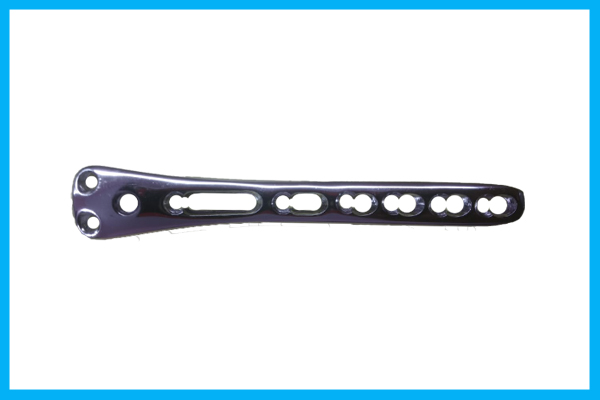

3.5mm LCP Posterior Latera Tibia
|
Cat. No. |
Holes |
Length |
|
ST741.03 |
|
|
|
ST741.04 |
|
|

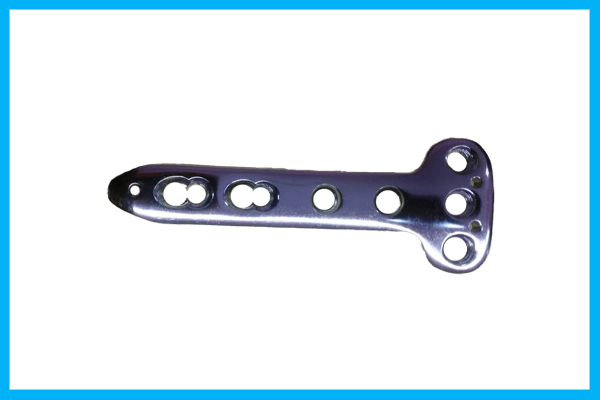

3.5mm LCP Proximal Tibia T Type
|
Cat. No. |
Length |
|
Thickness |
|
|
Width |
|
3.5mm LCP Proximal Tibia
|
Cat. No. |
Holes |
Length |
|
ST741.03 |
|
|
|
ST741.04 |
|
|
3.5mm LCP Recon Plate
|
Cat. No. |
Length |
|
Thickness |
|
|
Width |
|

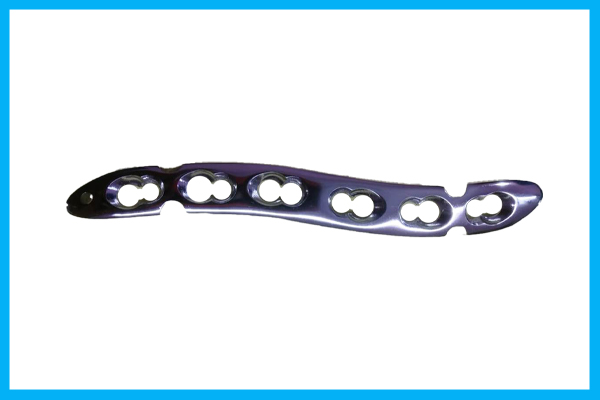

3.5mm LCP S Clavicle Plate
|
Cat. No. |
Holes |
Length |
|
ST741.03 |
|
|
|
ST741.04 |
|
|

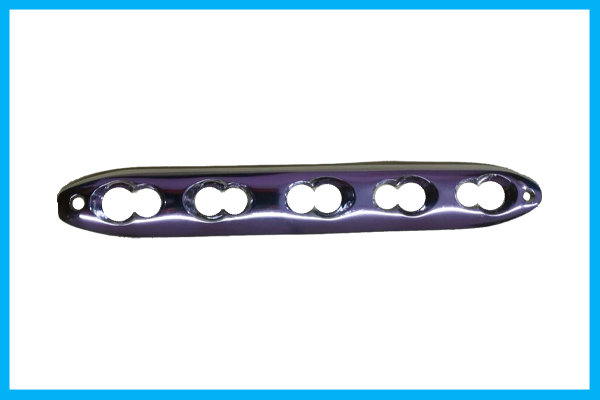

3.5mm LCP Small Plate
|
Cat. No. |
Length |
|
Thickness |
|
|
Width |
|

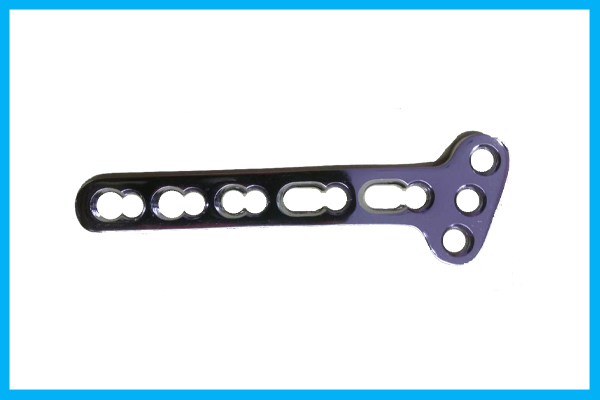

3.5mm LCP T Obliqe Plate
|
Cat. No. |
Holes |
Length |
|
ST741.03 |
|
|
|
ST741.04 |
|
|

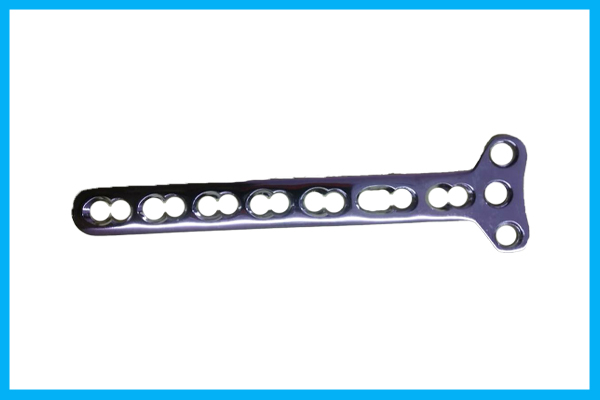

3.5mm LCP T Plate
|
Cat. No. |
Length |
|
Thickness |
|
|
Width |
|

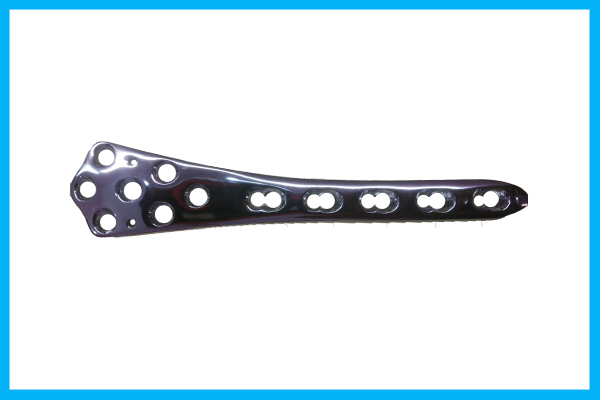

4.5--5.0mm LCP Distal Femur Plate
|
Cat. No. |
Holes |
Length |
|
ST741.03 |
|
|
|
ST741.04 |
|
|

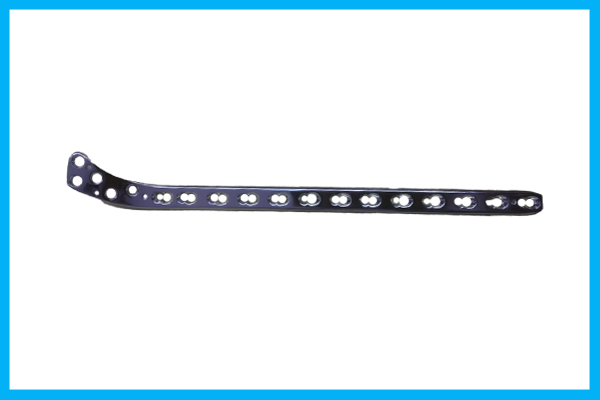

4.5-5.0mm LCP Lateral Tibia Plate
|
Cat. No. |
Length |
|
Thickness |
|
|
Width |
|
